OVERVIEW:
The GRV92MKT features a large 9” high-definition touch screen display that simply clips over the existing rear view mirror in the vehicle. The mirror has dual camera inputs and comes supplied with two 1080P full HD cameras. One camera comes with a 5.4M video extension cable, while the other camera comes with 2 x 10m video extension cables. Both cameras can be displayed on the mirror while driving and to change between cameras you can simply slide your fingers across the display. The heavy-duty camera also has a reverse trigger cable, when connected to the vehicle it will display parking gridlines while in reverse. The kit includes an accessory plug power cable for easy installation and only a small amount of wiring is required to active the reverse camera feature.
Specs:
MONITOR SPECIFICATIONS:
- MONITOR SIZE: 9.35″
- MOUNTING TYPE: CLIP ON REAR VIEW MIRROR
- INPUT VOLTAGE: 5V (12/24V ACCESSORY POWER ADAPTER INCLUDED)
- VIDEO INPUTS: 2
- VIDEO CONNECTION TYPE: 2.5MM JACK
- DIMENSIONS: 72mm(H) X 260mm(W) X 18mm(D)

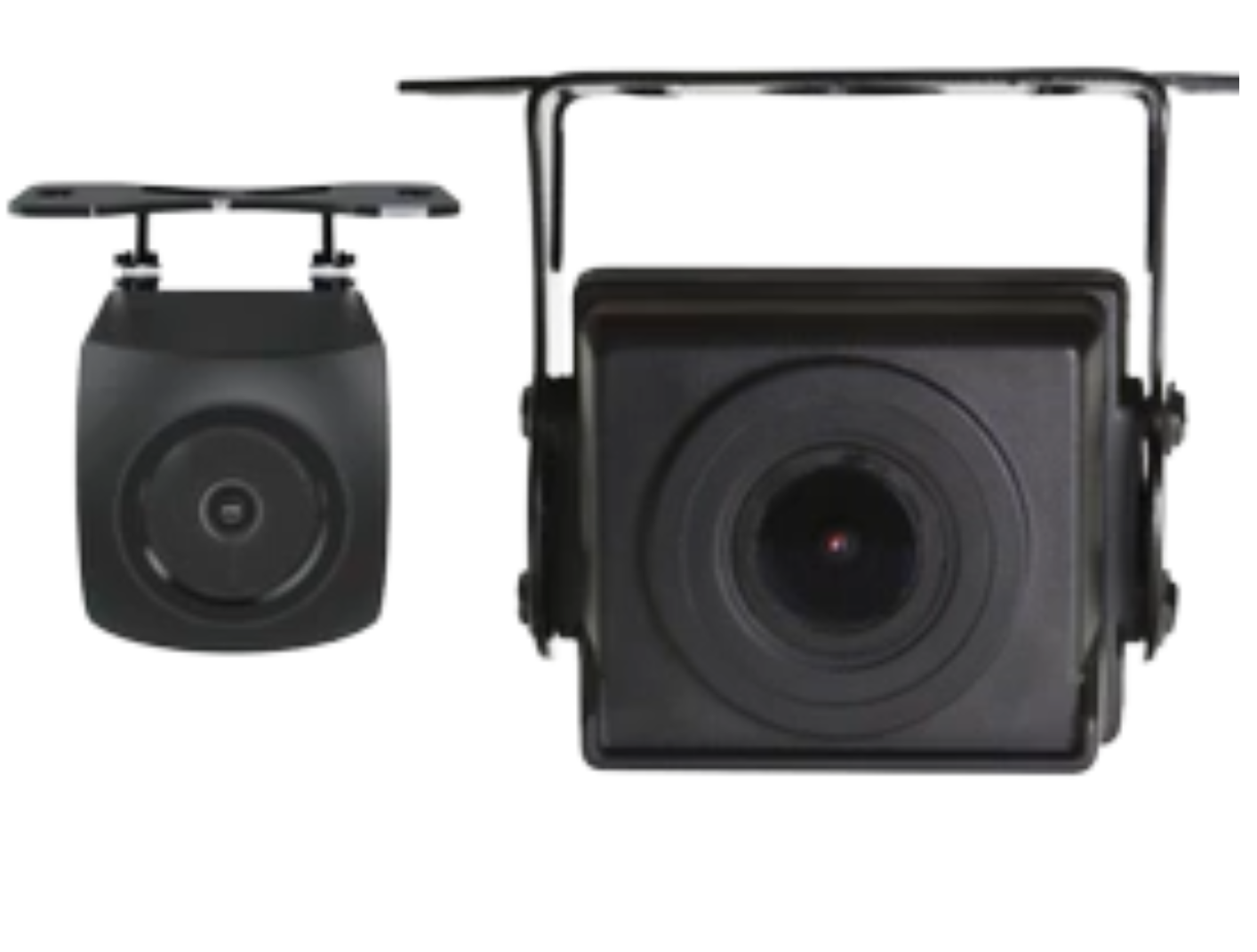

SMALL REAR CAMERA SPECIFICATIONS:
- MOUNT TYPE: SURFACE MOUNT
- CAMERA RESOLUTION: 1080P
- CAMERA ANGLE: 110 DEGREE
- IMAGE SENSOR (CMOS or CCD): CMOS
- PARKING GRIDLINES: NO
- IP RATING: IP67
- INPUT VOLTAGE: N/A
- VIDEO CABLE LENGTH: 5.4M
- REVERSE TRIGGER ON VIDEO CABLE: NO
- DIMENSIONS (Camera Only): 22mm(H) x 22mm(W) x 30mm(L)
LARGE REAR CAMERA SPECIFICATIONS:
- MOUNT TYPE: SURFACE MOUNT
- CAMERA RESOLUTION: 1080P
- CAMERA ANGLE: 110 DEGREE
- IMAGE SENSOR (CMOS or CCD): CMOS
- PARKING GRIDLINES: YES
- IP RATING: IP67
- INPUT VOLTAGE: N/A
- VIDEO CABLE LENGTH: 20M (2 x 10M 4 PIN PROLINK CABLES)
- REVERSE TRIGGER ON VIDEO CABLE: YES
- DIMENSIONS (Camera Only): 35mm(H) x 41mm(W) x 35mm(L)
KIT SPECIFICATIONS:
- WIRED OR WIRELESS: WIRED
- INCLUSIONS:
- MIRROR MONITOR
- 2 CAMERAS
- 5.4M VIDEO CABLE
- 2 X 10M VIDEO CABLES (4 PIN PROLINK)
- 12V/24V CHARGING ADAPTER
- MOUNTING SCREWS
- 3M ADHESIVE FOR BUTTERFLY CAMERA
- MIRROR PROTECTING PADS
- RUBBER MOUNTING CLIP:
-
- If you are planning to install the heavy duty camera in this kit on a trailer or caravan, we recommend using the Gator GTK1 4 PIN PROLINK Trailer Connection Kit (sold separately).
- GUNIHWC Hard Wire Kit available for connection via vehicle fuse box instead of using the included accessory socket power adaptor (sold separately)
